SAP431E
PRECISION ADJUSTABLE SHUNT REGULATOR

SAP431E is an adjustable three-terminal shunt regulator with excellent thermal stability over operating temperature range. The output voltage can be set to any value between Vref (approximately 2.5V) and 36V through external resistors. It provides a very sensitive turn-on characteristic, which makes it possible to replace Zener diodes in many applications.


Main feature

Adjustable output voltage: up to 36V

Low dynamic output impedance: 0.3W

Sink current capability: 0.3~100mA

Equivalent full-scale temperature coefficient: typ. 50ppm/°C

Temperature compensation in the rated operating temperature range

Low output noise

Fast start-up response


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SAP431EKATR SOT-23-3L 431E Halogen free Tape & Reel
SAP431EKFTR SOT-23 431E Halogen free Tape & Reel

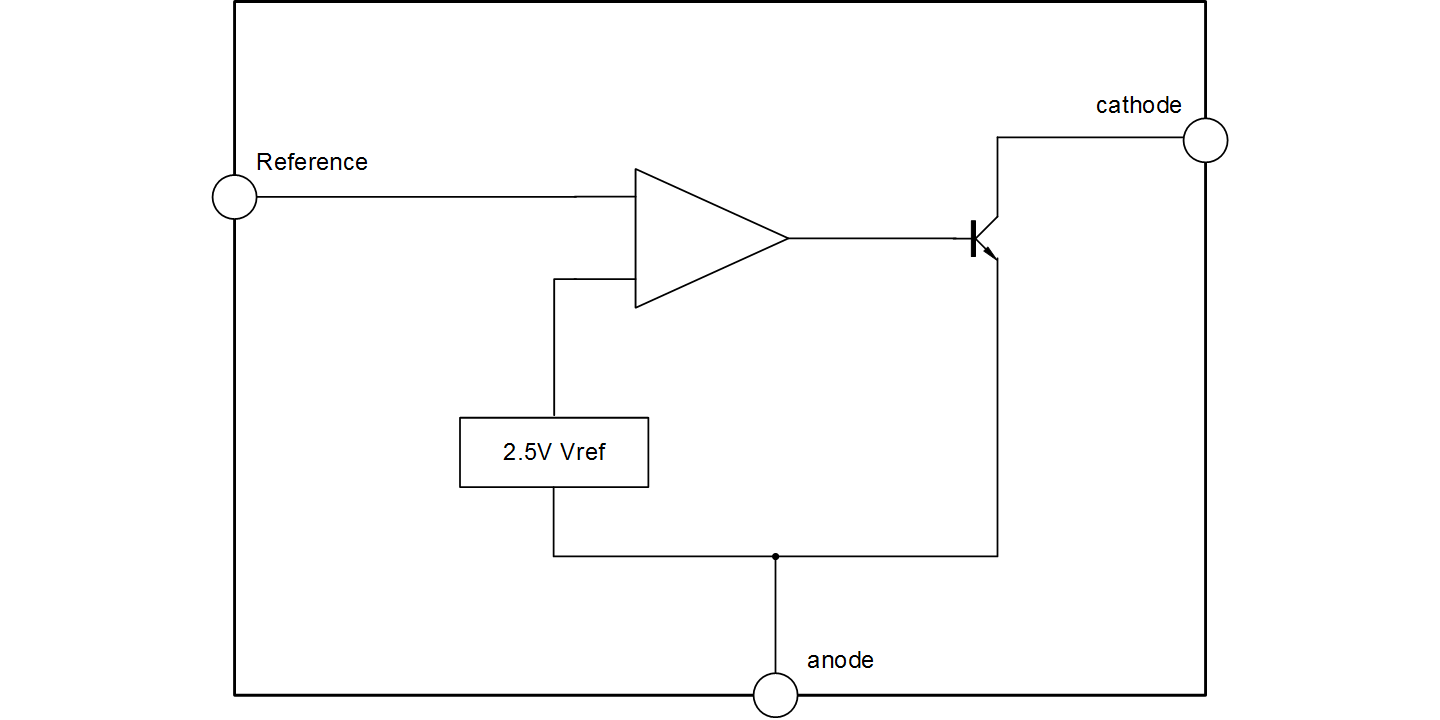

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SAP431E 0 1970-01-01 SAP431E Brief Datasheet
