SLP74LVC2G07
BUFFERS WITH OPEN-DRAIN OUTPUTS

    The SLP74LVC2G07 is a dual buffer with open-drain outputs designed for 1.65V to 5.5V VCC operation.

    The inputs can be driven from either 3.3V or 5V devices. The output is an open drain driver and can implement active wired-AND or wired-OR by connect to other open-drain outputs.

   The device is specially designed for protect performance during power down using Power-Down-Protect circuit. The Power-Down-Protect circuitry disables the output drivers, preventing the damaging outside current back through the device when it is powered down.


Main feature

  • Supports from 1.65V to 5.5V operation

  • Input/output tolerant to 5V logic

  • -24mA output driver (VCC=3V)

  • Direct interface with TTL levels

  • ESD protection:

  • HBM exceeds 2000V

  • CDM exceeds 1000V

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC2G07KETR SOT-363-6L SY Halogen free Tape & Reel

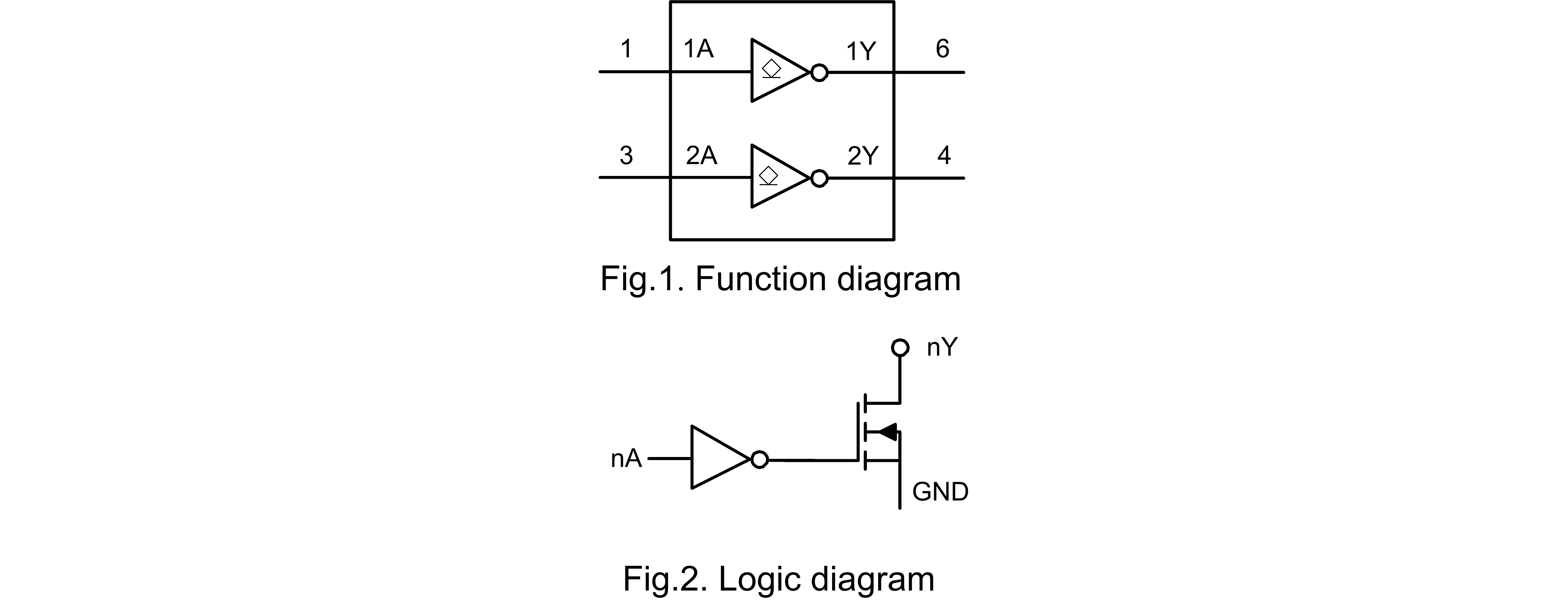

Block Diagram

SLP74LVC2G07 英文.png

Documents
title Types of Size (KB) date Download the latest English version
SLP74LVC2G07 0 1970-01-01 SLP74LVC2G07 Brief Datasheet
